An underslung crane, renowned for its innovative design and versatility, represents a critical solution in lifting and material handling across various industries. These cranes are mounted from the ceiling or a supporting structure, allowing for a highly efficient use of floor space, which is particularly beneficial in environments where overhead space is limited. Among the different types, the single girder underslung crane stands out for its simplicity and cost-effectiveness, offering a streamlined solution for both light and heavy-duty applications. Another variant, the underslung EOT (Electric Overhead Traveling) crane, integrates advanced electrical systems to provide precise control and enhanced lifting capabilities, making it a preferred choice for complex operational needs.

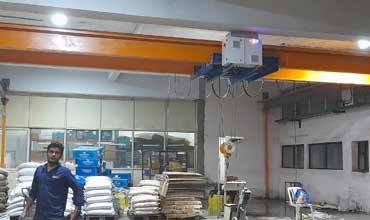

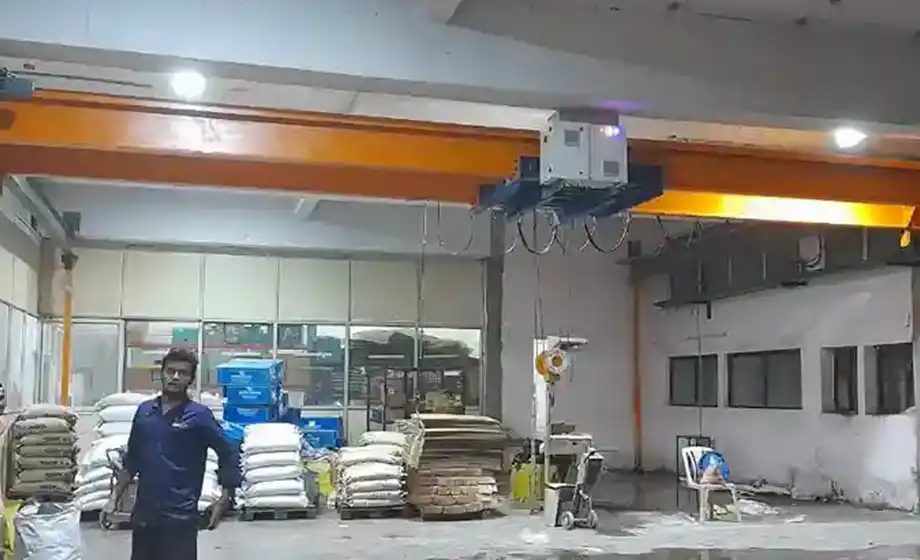

Underslung Crane
The underslung crane is engineered to offer optimal space utilization and operational efficiency in industrial settings. Its design involves mounting the crane system from the building's ceiling or structure, minimizing the need for additional support columns and thus maximizing usable floor space. The single girder underslung crane features a single horizontal beam that supports the hoist and trolley, delivering reliable performance for lighter lifting tasks with a reduced overall cost. On the other hand, the underslung EOT crane combines the traditional underslung design with electric overhead traveling mechanisms, providing advanced control and enhanced lifting precision. This crane type is ideal for facilities requiring a high degree of maneuverability and automation, ensuring seamless operation in various industrial environments.
-
Suspended Design: The crane is mounted beneath the building’s structure, utilizing the overhead space efficiently.
-
Compact Footprint: Minimal ground space requirement, making it ideal for areas with restricted floor space.
-
High Maneuverability: Excellent for precise and smooth load handling in confined spaces.
-
Customizable Configurations: Available in various spans, lifting capacities, and lifting heights to suit different operational needs.
-
Efficient Utilization of Building Height: Takes advantage of the full building height, enhancing vertical lifting capabilities.
-
Reduced Ground Obstruction: Keeps the ground area clear, facilitating better movement of other equipment or personnel.
-
Quiet Operation: Designed for low-noise operation, minimizing workplace disturbance.
-
Versatile Mounting Options: Can be mounted on various building structures, including beams, ceilings, and custom-built supports.
-
Lifting Capacity:Up to 20 Tons
-
Span: Up to 30mtr
-
Lifting Height: Varies with application
-
Operation: Pendant or remote control
-
Applications: Spaces with low headroom, production lines, assembly areas
-
Manufacturing Facilities: Ideal for lifting and moving heavy components or assemblies in production lines.
-
Warehousing and Logistics: Efficient for handling and relocating goods within warehouse facilities with limited ground space.
-
Automotive Industry: Used for assembly line operations, where precise load positioning is crucial.
-
Construction Sites: Suitable for lifting construction materials and tools in high-rise building projects.
-
Aerospace Industry: Useful for moving large and delicate aerospace components in assembly and maintenance areas.
-
Research and Development Labs: Facilitates the movement of sensitive or heavy equipment in laboratory settings.
-
Power Plants: Employed for maintenance and servicing of large equipment and machinery within power generation facilities.
-
Film and Television Studios: Used for lifting and positioning lighting and camera equipment in studio environments.
-
Optimal Space Utilization: Suspended from the ceiling, freeing up valuable floor space for other operations.
-
Enhanced Maneuverability: Provides smooth and precise control, ideal for handling delicate or high-value materials.
-
Reduced Ground Obstructions: Eliminates the need for floor supports, reducing the risk of interference with other equipment.
-
High Lifting Heights: Allows for lifting and moving materials in high-clearance areas, making it suitable for tall structures and facilities.
-
Efficient Use of Building Space: Can be installed in areas with limited headroom or where other crane types are impractical.
-
Reduced Maintenance: Fewer moving parts on the ground level mean less wear and tear and lower maintenance requirements.
-
Enhanced Safety: Minimized risk of accidents related to floor-mounted equipment and obstacles.
-
Versatile Application: Suitable for a variety of industries, including manufacturing, assembly, and warehouse operations.
